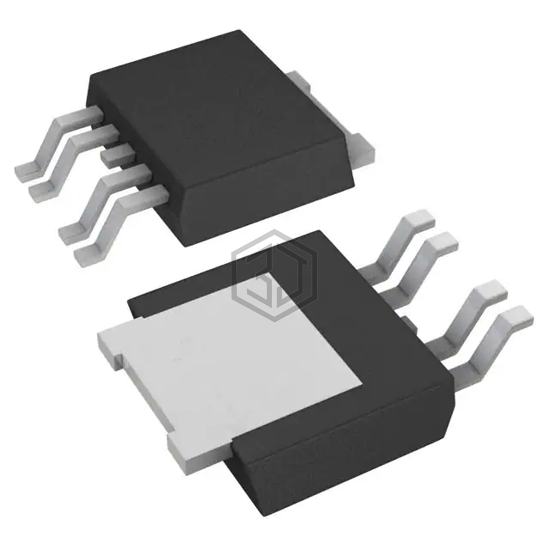

IC PWR DRIVER N-CHANNEL 1:1 PPAK
VN820PTTR-E is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER N-CHANNEL 1:1 PPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD.
In Stock: 5,713
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 9A |
| Rds On (Typ) | 40mOhm (Max) |
| Input Type | Non-Inverting |
| Features | Auto Restart, Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PPAK |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VN03SP-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 100% | View |
| VN820SPTR-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 100% | View |
| VN820SP-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 100% | View |
| VN06SP | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 100% | View |
| MC06XSD200FK | Freescale Semiconductor | HIGH-SIDE SWITCH, 36V, DUAL 6MOH | 81% | View |
| VNQ7004SYTR | STMicroelectronics | IC PWR DRVR N-CHAN 4:4 PWRSSO36 | 66% | View |
Submit your RFQ for VN820PTTR-E and get a quote within 24 hours.
