IC MOTOR DRIVER PAR 28SO

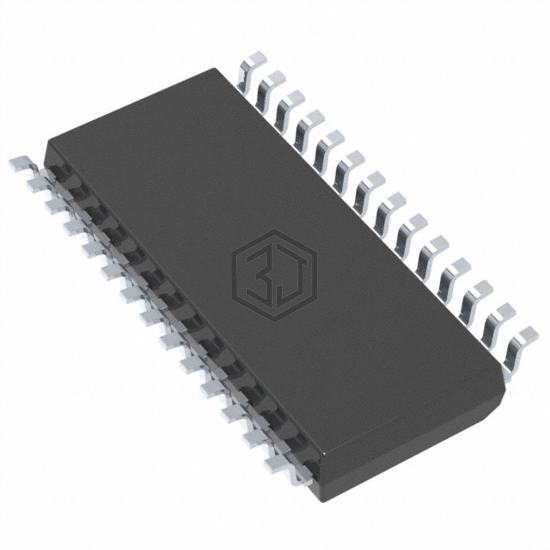

VN772K is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC MOTOR DRIVER PAR 28SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5.5V ~ 36V, package / case 28-SOIC (0.295", 7.50mm Width).
In Stock: 1,193
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose, Relays |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 120mOhm (Max) |
| Current - Output / Channel | 9A |
| Current - Peak Output | - |
| Voltage - Supply | 5.5V ~ 36V |
| Voltage - Load | 5.5V ~ 36V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Status Flag |
| Fault Protection | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SO |
VN772K is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VN771KPTR-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 100% | View |
| VN772K13TR | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 100% | View |
| VN771K-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 100% | View |
| VN771K | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 100% | View |
| VN771KP-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 100% | View |
| VN772K-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 100% | View |
Submit your RFQ for VN772K and get a quote within 24 hours.
