IC PWR DRIVER 1:1 5PENTAWATT

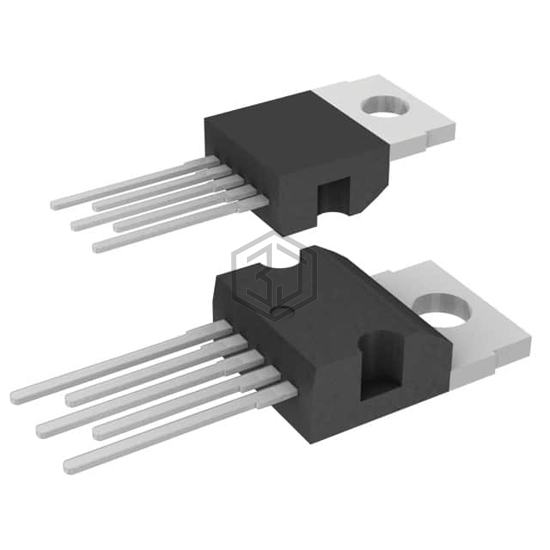

VN540-12-E is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER 1:1 5PENTAWATT. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case Pentawatt-5 (Straight Leads, Staggered Depth).
In Stock: 6,226
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | - |
| Interface | On/Off |
| Voltage - Load | 10V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.8A |
| Rds On (Typ) | 50mOhm (Max) |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -25°C ~ 85°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | 5-PENTAWATT |
| Package / Case | Pentawatt-5 (Straight Leads, Staggered Depth) |
VN540-12-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VN540-E | STMicroelectronics | IC PWR DRIVER 1:1 5PENTAWATT | 100% | View |
| IPS6041PBF | Infineon Technologies | IC PWR SWITCH HI SIDE TO220AB | 83% | View |
| IPS7091PBF | Infineon Technologies | IC PWR SWITCH HI SIDE TO220AB | 67% | View |
Submit your RFQ for VN540-12-E and get a quote within 24 hours.
