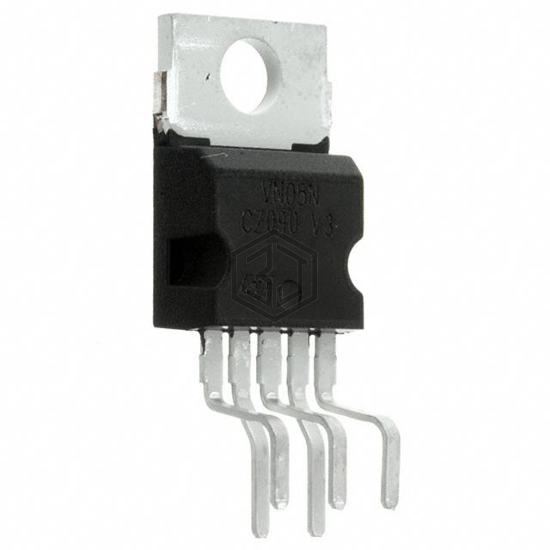

IC PWR DRVR N-CH 1:1 5PENTAWATT
VN05N is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRVR N-CH 1:1 5PENTAWATT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case Pentawatt-5 (Vertical, Bent and Staggered Leads).
In Stock: 2,475
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 7V ~ 26V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 13A |
| Rds On (Typ) | 180mOhm (Max) |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | 5-PENTAWATT |
| Package / Case | Pentawatt-5 (Vertical, Bent and Staggered Leads) |
VN05N is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VN05N-E | STMicroelectronics | IC PWR DRVR N-CH 1:1 5PENTAWATT | 100% | View |
| AUIR3315 | Infineon Technologies | IC PWR DRIVER N-CHAN 1:1 TO220 | 94% | View |
| IR3312 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO220AB | 94% | View |
| BTS500701TMBAKSA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO220-7 | 93% | View |
| BTS640S2S | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO220-7 | 89% | View |
| BTS640S2 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO220-7 | 89% | View |
Submit your RFQ for VN05N and get a quote within 24 hours.
