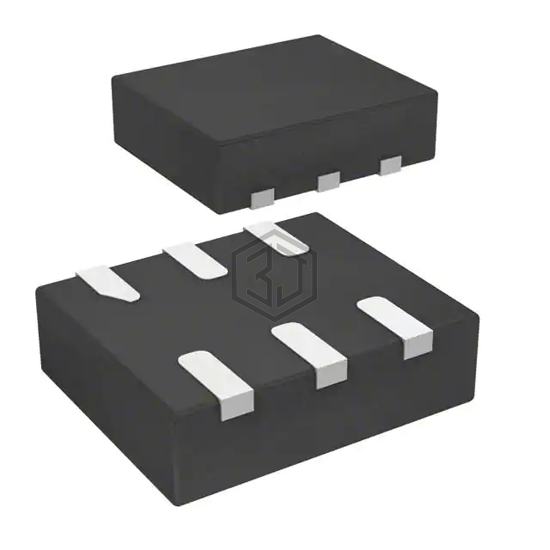

IC SWITCH SPDT 6DFN
STG5123DTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH SPDT 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 9,930
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 28ns, 21ns |
| -3db Bandwidth | 150MHz |
| Charge Injection | 33pC |
| Channel Capacitance (CS(off), CD(off)) | 25pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -80dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-DFN (1.2x1) |
STG5123DTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NX3L1T66GM,115 | NXP USA Inc. | IC ANALOG SWITCH SPST XSON6 | 62% | View |
| STG4158BJR | STMicroelectronics | IC SWITCH SPDT 6FLIPCHIP | 62% | View |
| DG2003DQ-T1-E3 | Vishay Siliconix | IC SWITCH 2 X SPST 2.5 OHM 8MSOP | 61% | View |
| DG2004DQ-T1-E3 | Vishay Siliconix | IC SWITCH 2 X SPST 2.5 OHM 8MSOP | 61% | View |
| 74HC4016D/AUJ | NXP USA Inc. | IC SWITCH QUAD SPST 14SOIC | 58% | View |
| ADG798HRUZ | Analog Devices Inc. | IC SWITCH SINGLE 16TSSOP | 52% | View |
Submit your RFQ for STG5123DTR and get a quote within 24 hours.
