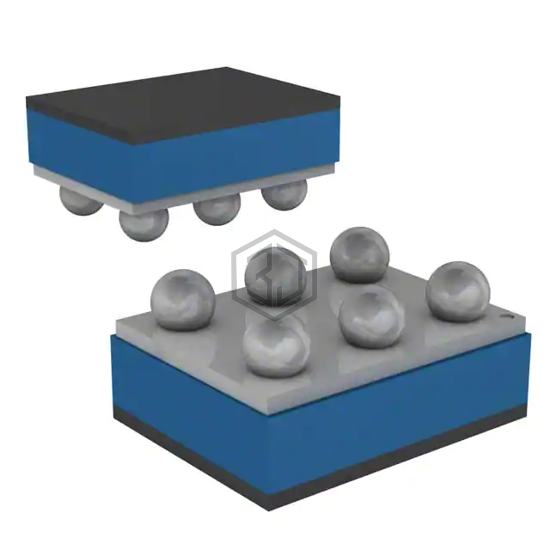

IC SWITCH SPDT 6FLIPCHIP
STG4158BJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH SPDT 6FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-WFBGA, FCBGA, number of circuits 1.
In Stock: 4,101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 600mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 28ns, 13ns |
| -3db Bandwidth | 40MHz |
| Charge Injection | 230pC |
| Channel Capacitance (CS(off), CD(off)) | 30pF |
| Current - Leakage (IS(off)) (Max) | 30nA |
| Crosstalk | -61dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFBGA, FCBGA |
| Supplier Device Package | 6-FlipChip (1.23x0.83) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG798HRUZ | Analog Devices Inc. | IC SWITCH SINGLE 16TSSOP | 74% | View |
| ISL54057IRUZ-T | Renesas Electronics America Inc | IC SWITCH 4X1 16UTQFN | 74% | View |
| NX3L2T66GD,125 | NXP USA Inc. | IC ANALOG SWITCH SPST XSON8U | 70% | View |
| NX3V1T66GM,132 | NXP USA Inc. | IC SWITCH SPST 6XSON | 68% | View |
| NX3V1T66GM,115 | NXP USA Inc. | IC SWITCH SPST 6XSON | 68% | View |
| ADG858BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPDT 16LFCSP | 61% | View |
Submit your RFQ for STG4158BJR and get a quote within 24 hours.
