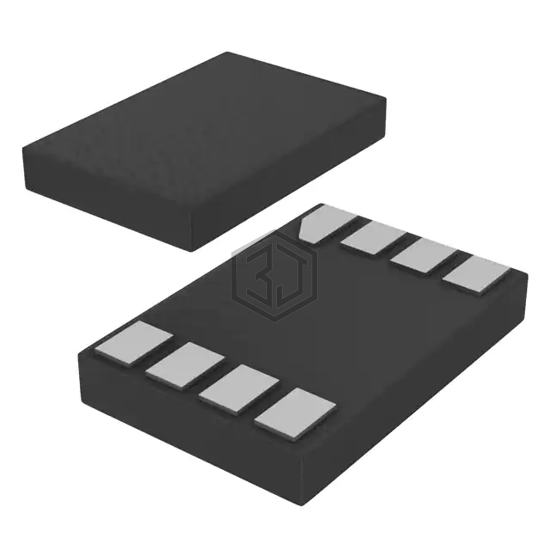

IC ANALOG SWITCH SPST XSON8U
NX3L2T66GD,125 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH SPST XSON8U. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-XFDFN, number of circuits 2.
In Stock: 11,252
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 28ns, 20ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 6pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-XFDFN |
| Supplier Device Package | 8-XSON, SOT996-2 (2x3) |
NX3L2T66GD,125 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NX3L2T66GM,125 | NXP USA Inc. | IC ANALOG SWITCH SPST 8XQFN | 100% | View |
| NX3L1T66GM,115 | NXP USA Inc. | IC ANALOG SWITCH SPST XSON6 | 94% | View |
| ADG836LYRMZ | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 80% | View |
| ADG836YRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 80% | View |
| ADG836YRMZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 80% | View |
| ADG798HRUZ | Analog Devices Inc. | IC SWITCH SINGLE 16TSSOP | 64% | View |
Submit your RFQ for NX3L2T66GD,125 and get a quote within 24 hours.
