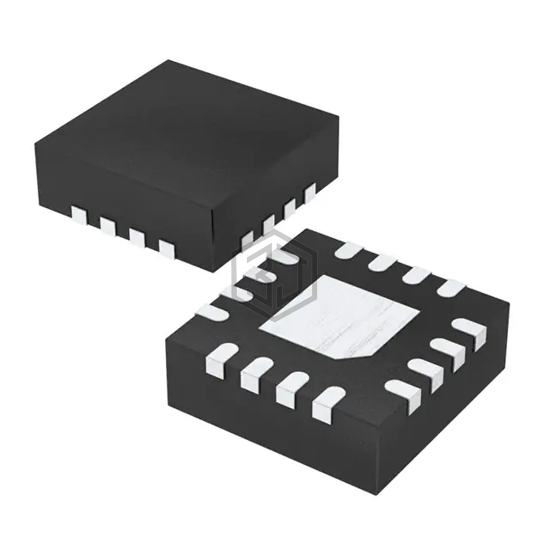

IC SWITCH DUAL SPDT 16QFN
STG3684QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 2.
In Stock: 8,430
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | 35pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -54dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
STG3684QTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STG3680QTR | STMicroelectronics | IC SWITCH DUAL 2X1 16QFN | 100% | View |
| HI9P0201HS-9 | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16SOIC | 78% | View |
| ISL84052IA-T | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16QSOP | 71% | View |
| ISL84684IUZ-T | Intersil | SPDT ANALOG SWITCH, 2 FUNC, 2 CH | 69% | View |
| ISL84051IBZ-T | Renesas Electronics America Inc | IC MUX/DEMUX 8X1 16SOIC | 63% | View |
| MAX4625EZT+T | Analog Devices Inc./Maxim Integrated | 1OHM, LOW-VOLTAGE, SINGLE-SUPPLY | 50% | View |
Submit your RFQ for STG3684QTR and get a quote within 24 hours.
