Renesas Electronics America Inc
IC SWITCH QUAD SPST 16SOIC

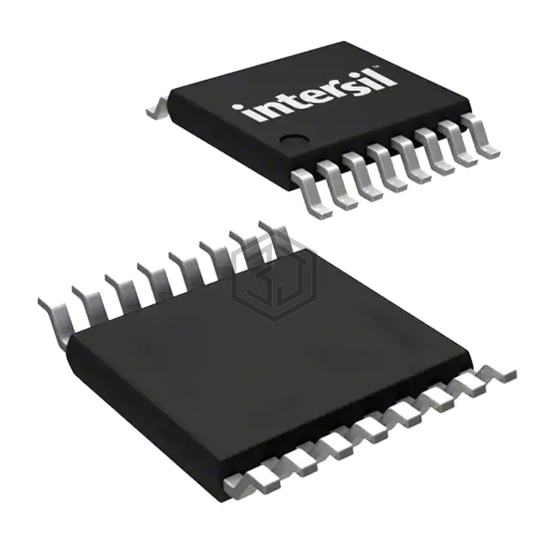

HI9P0201HS-9 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.295", 7.50mm Width), number of circuits 4.
In Stock: 1,347
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns |
| -3db Bandwidth | - |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -86dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
HI9P0201HS-9 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STG3684QTR | STMicroelectronics | IC SWITCH DUAL SPDT 16QFN | 78% | View |
| STG3680QTR | STMicroelectronics | IC SWITCH DUAL 2X1 16QFN | 78% | View |
| FSA2467UMX | onsemi | IC SWITCH DUAL DPDT 16UMLP | 71% | View |
| DG2019DN-T1-E4 | Vishay Siliconix | IC SWITCH DUAL SPDT 16QFN | 70% | View |
| DG613EEY-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16SOIC | 56% | View |
| ISL84684IUZ-T | Intersil | SPDT ANALOG SWITCH, 2 FUNC, 2 CH | 50% | View |
Submit your RFQ for HI9P0201HS-9 and get a quote within 24 hours.
