GATE DRIVER

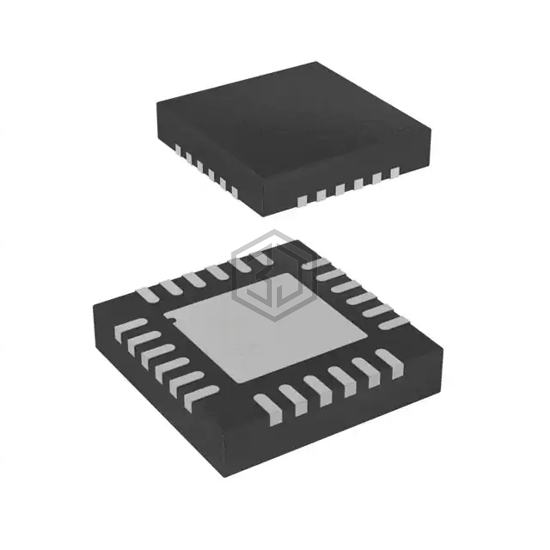

STDRIVE101 is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. GATE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 20V, package / case 24-VFQFN Exposed Pad.
In Stock: 9,342
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (3) |
| Applications | DC Motors, General Purpose |
| Interface | Analog, Logic |
| Load Type | Capacitive and Resistive |
| Technology | Power MOSFET, IGBT |
| Rds On (Typ) | 35Ohm |
| Current - Output / Channel | - |
| Current - Peak Output | 430mA |
| Voltage - Supply | 9V ~ 20V |
| Voltage - Load | 580V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Over Current, Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VFQFPN (4x4) |
Submit your RFQ for STDRIVE101 and get a quote within 24 hours.
