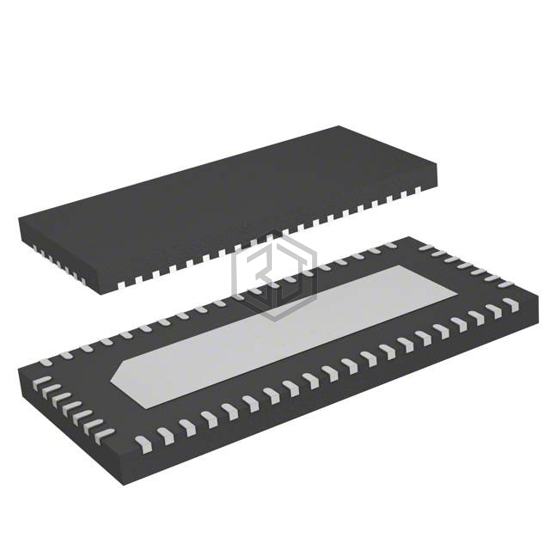

IC MUX/DEMUX QUAD 2X1 56QFN
ST3DV520QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC MUX/DEMUX QUAD 2X1 56QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 56-WFQFN Exposed Pad, number of circuits 4.
In Stock: 1,688
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 7.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 9ns, 8.5ns |
| -3db Bandwidth | 450MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | 5µA |
| Crosstalk | -45dB @ 250MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 56-WFQFN Exposed Pad |
| Supplier Device Package | 56-QFN (11x5) |
ST3DV520QTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STG3693QTR | STMicroelectronics | IC SWITCH QUAD SPDT 16QFN | 59% | View |
| STG3692QTR | STMicroelectronics | IC SWITCH QUAD SPDT 16QFN | 59% | View |
| NLX2G66DMUTAG | onsemi | IC MUX DUAL BILATERAL 8UDFN | 55% | View |
| NLX2G66DMUTCG | onsemi | IC MUX DUAL BILATERAL 8UDFN | 55% | View |
| NLAS323USG | onsemi | IC SWITCH DUAL SPST US8 | 52% | View |
| NLAS324USG | onsemi | IC SWITCH DUAL SPST US8 | 52% | View |
Submit your RFQ for ST3DV520QTR and get a quote within 24 hours.
