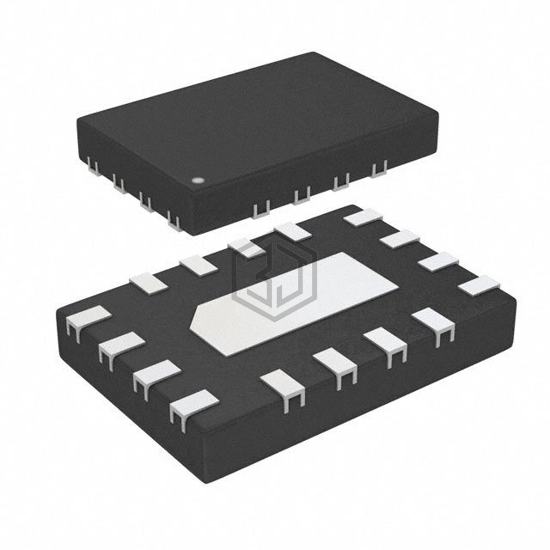

IC SWITCH QUAD SPDT 16QFN
STG3693QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH QUAD SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 16-UFQFN Exposed Pad, number of circuits 4.
In Stock: 2,717
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 5.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 5ns |
| -3db Bandwidth | 800MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -78dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (2.6x1.8) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STG3692QTR | STMicroelectronics | IC SWITCH QUAD SPDT 16QFN | 100% | View |
| HI-8190PCTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16CSP | 64% | View |
| HI-8192PCTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16CSP | 64% | View |
| HI-8190PSTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16SOIC | 64% | View |
| HI-8191PSTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16SOIC | 64% | View |
| HI-8192PSTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16SOIC | 64% | View |
