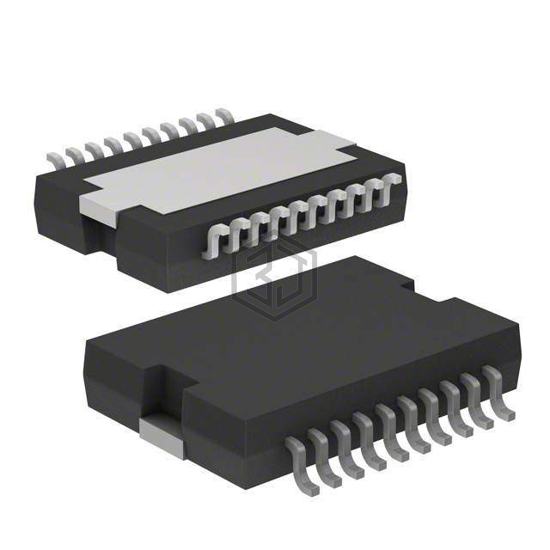

IC PWR DRIVER N-CHAN 1:8 PWRSO20
L9825 is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER N-CHAN 1:8 PWRSO20. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 20-SOIC (0.433", 11.00mm Width) Exposed Pad.
In Stock: 3,886
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | Latched Driver |
| Number of Outputs | 8 |
| Ratio - Input:Output | 1:8 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 45V (Max) |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 1A |
| Rds On (Typ) | 750mOhm (Max) |
| Input Type | - |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerSO-20 |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC33298DW | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:8 24SOIC | 71% | View |
| MC33298DWR2 | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:8 24SOIC | 71% | View |
| TLE7230R | Infineon Technologies | TLE7230 - SPIDER - SPI DRIVER FO | 71% | View |
| BD8LB600FS-CE2 | Rohm Semiconductor | IC PWR SWITCH N-CHAN 4:8 24SSOP | 71% | View |
| BTS3408GXUMA2 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 8SOIC | 70% | View |
| ZXMS6001N3TA | Diodes Incorporated | IC PWR DRIVER N-CHAN 1:1 SOT223 | 63% | View |
Submit your RFQ for L9825 and get a quote within 24 hours.
