IC PWR SWITCH N-CHAN 1:1 PWRSO20

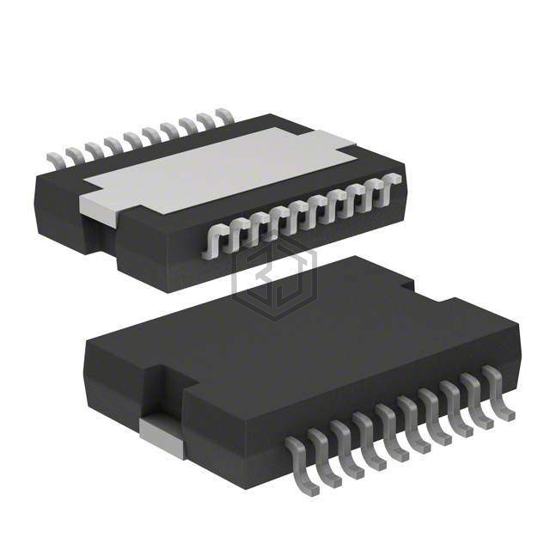

L9349-LF is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR SWITCH N-CHAN 1:1 PWRSO20. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 20-PowerSOIC (0.433", 11.00mm Width).
In Stock: 4,410
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 32V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A, 5A |
| Rds On (Typ) | 200mOhm, 300mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerSO-20 |
| Package / Case | 20-PowerSOIC (0.433", 11.00mm Width) |
L9349-LF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| L9349TR-LF | STMicroelectronics | IC PWR SWITCH N-CHAN 1:1 PWRSO20 | 100% | View |
| L9362 | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO36 | 100% | View |
| TLE6220GPAUMA2 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-20 | 100% | View |
| TLE6220GPNUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-20 | 100% | View |
| L9348-TR | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO36 | 99% | View |
| BTF3080EJXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TDSO-8 | 68% | View |
