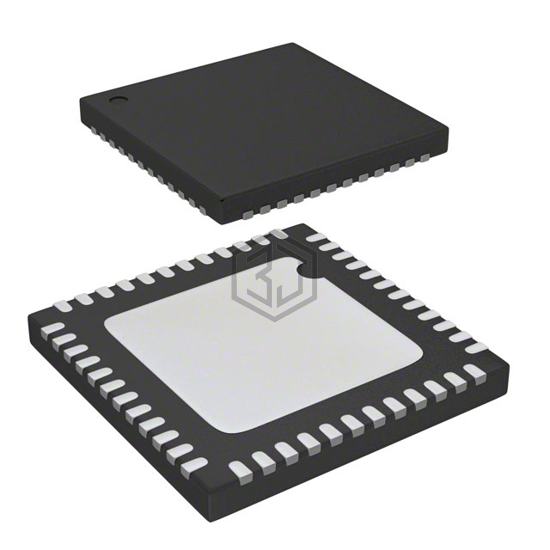

IC MOTOR DRIVER PAR 48QFN
L6206QTR is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC MOTOR DRIVER PAR 48QFN. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 125°C (TJ), voltage - supply 8V ~ 52V, package / case 48-VFQFN Exposed Pad.
In Stock: 4,562
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Interface | Logic |
| Load Type | Inductive |
| Technology | BCDMOS |
| Rds On (Typ) | 280mOhm LS, 340mOhm HS |
| Current - Output / Channel | 2.5A |
| Current - Peak Output | 5.6A |
| Voltage - Supply | 8V ~ 52V |
| Voltage - Load | 8V ~ 52V |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VFQFPN (7x7) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| L6206Q | STMicroelectronics | IC MOTOR DRIVER PAR 48QFN | 100% | View |
| L6207Q | STMicroelectronics | IC MOTOR DRIVER PAR 48VFQFPN | 100% | View |
| L6207QTR | STMicroelectronics | IC MOTOR DRIVER PAR 48VFQFPN | 100% | View |
| L6206D | STMicroelectronics | IC MOTOR DRIVER PAR 24SOIC | 97% | View |
| L6207D013TR | STMicroelectronics | IC MOTOR DRIVER PAR 24SOIC | 97% | View |
| DRV8935PPWPR | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 73% | View |
Submit your RFQ for L6206QTR and get a quote within 24 hours.
