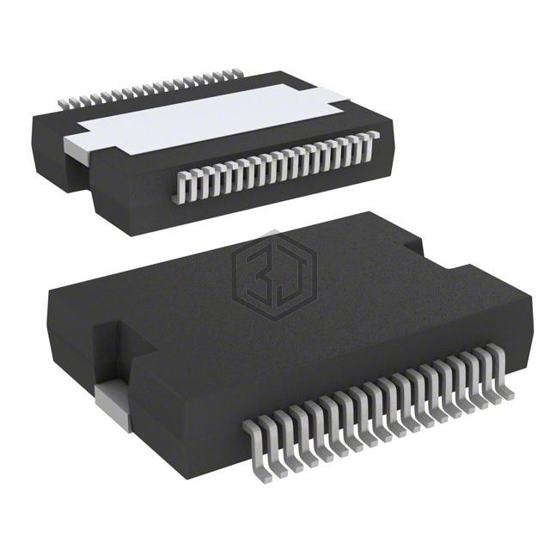

IC MOTOR DRIVER PAR 36POWERSO
L6206PD013TR is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC MOTOR DRIVER PAR 36POWERSO. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 125°C (TJ), voltage - supply 8V ~ 52V, package / case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad.
In Stock: 9,545
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Interface | Logic |
| Load Type | Inductive |
| Technology | BCDMOS |
| Rds On (Typ) | 300mOhm |
| Current - Output / Channel | 2.8A |
| Current - Peak Output | 5.6A |
| Voltage - Supply | 8V ~ 52V |
| Voltage - Load | 8V ~ 52V |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad |
| Supplier Device Package | PowerSO-36 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| L6206D013TR | STMicroelectronics | IC MOTOR DRIVER PAR 24SOIC | 100% | View |
| L6207PD013TR | STMicroelectronics | IC MOTOR DRIVER PAR 36POWERSO | 100% | View |
| L6207PD | STMicroelectronics | IC MOTOR DRIVER PAR 36POWERSO | 100% | View |
| L6206PD | STMicroelectronics | IC MOTOR DRIVER PAR 36POWERSO | 100% | View |
| L6207D | STMicroelectronics | IC MOTOR DRIVER PAR 24SOIC | 100% | View |
| L6207D013TR | STMicroelectronics | IC MOTOR DRIVER PAR 24SOIC | 100% | View |
Submit your RFQ for L6206PD013TR and get a quote within 24 hours.
