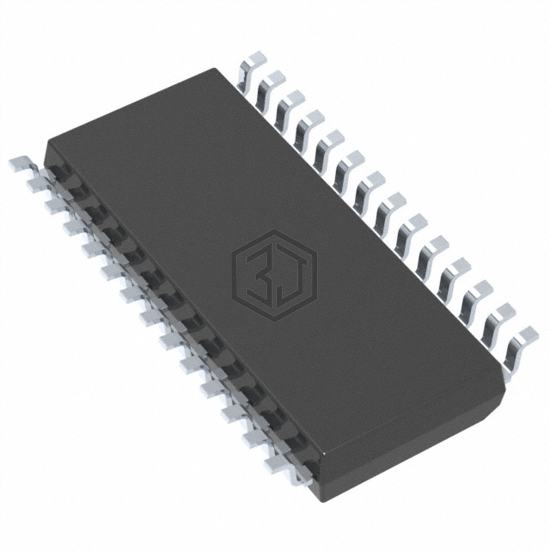

IC BRIDGE DRIVER PAR 28SOIC
E-L6204D is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC BRIDGE DRIVER PAR 28SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 2V ~ 7V, package / case 28-SOIC (0.295", 7.50mm Width).
In Stock: 1,459
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | BCDMOS |
| Rds On (Typ) | 1.2Ohm |
| Current - Output / Channel | 500mA |
| Current - Peak Output | 3A |
| Voltage - Supply | 2V ~ 7V |
| Voltage - Load | 12V ~ 48V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Over Temperature |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SO |
E-L6204D is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| L6204D | STMicroelectronics | IC MOTOR DRIVER PAR 28SOIC | 100% | View |
| L6204D013TR | STMicroelectronics | IC MOTOR DRIVER PAR 28SOIC | 100% | View |
Submit your RFQ for E-L6204D and get a quote within 24 hours.
