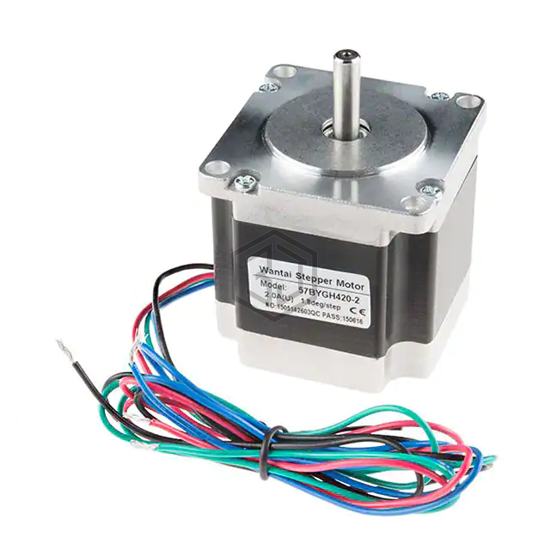

STEP MOTOR HYBRID BIPOLAR 3.2V
ROB-13656 is a Stepper Motors manufactured by SparkFun Electronics. STEP MOTOR HYBRID BIPOLAR 3.2V. Key specifications: voltage - rated 3.2VDC, current rating (amps) 2 A, size / dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm), termination style Wire Leads.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 3.2VDC |
| Current Rating (Amps) | 2 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 125 / 882.7 |
| Size / Dimension | Square - 2.220" x 2.220" (56.40mm x 56.40mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.250" (6.35mm) |
| Length - Shaft and Bearing | 0.827" (21.00mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 1.6 Ohms |
| Features | Round Shaft |
Submit your RFQ for ROB-13656 and get a quote within 24 hours.
