STEPPER MOTOR W/ INCREMENTAL ENC

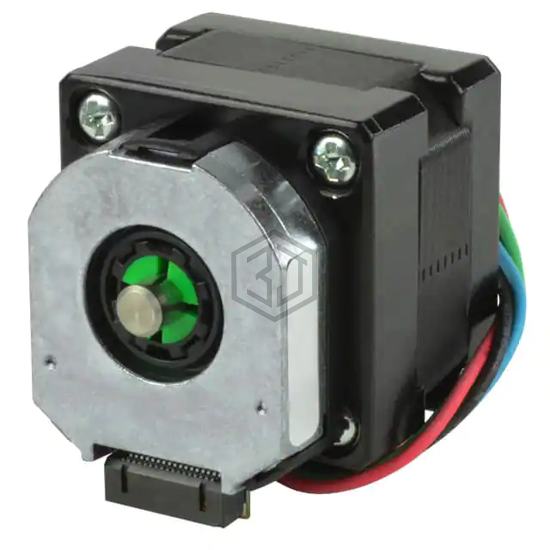

NEMA14-10-08D-AMT112S is a Stepper Motors manufactured by CUI Devices. STEPPER MOTOR W/ INCREMENTAL ENC. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24 ~ 48VDC, current rating (amps) 350 mA, size / dimension Square - 1.390" x 1.390" (35.30mm x 35.30mm).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24 ~ 48VDC |
| Current Rating (Amps) | 350 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±0.2% |
| Torque - Holding (oz-in / mNm) | 7.5 / 52.96 |
| Size / Dimension | Square - 1.390" x 1.390" (35.30mm x 35.30mm) |
| NEMA Frame Size | 14 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.602" (15.30mm) |
| Mounting Hole Spacing | 1.023" (26.00mm) |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 8.5 Ohms |
| Features | Integrated Encoder |
Submit your RFQ for NEMA14-10-08D-AMT112S and get a quote within 24 hours.
