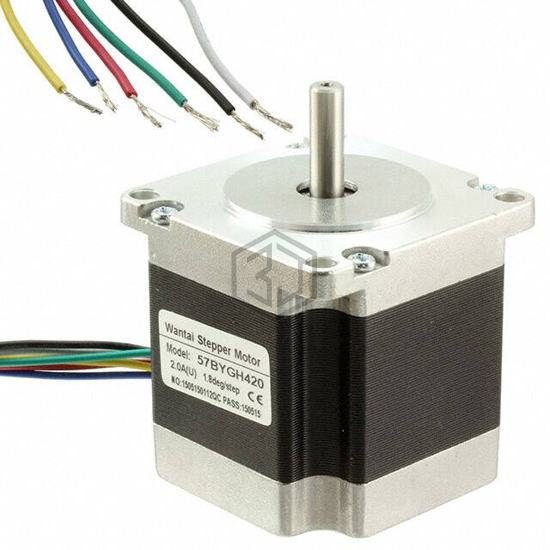

STEPPER MOTOR HYBRID UNIPOLAR 3V
ROB-10847 is a Stepper Motors manufactured by SparkFun Electronics. STEPPER MOTOR HYBRID UNIPOLAR 3V. Key specifications: voltage - rated 3VDC, current rating (amps) 2 A, size / dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm), termination style Wire Leads.
In Stock: 9,326
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Hybrid |
| Coil Type | Unipolar |
| Voltage - Rated | 3VDC |
| Current Rating (Amps) | 2 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 127.47 / 900 |
| Size / Dimension | Square - 2.220" x 2.220" (56.40mm x 56.40mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.250" (6.35mm) |
| Length - Shaft and Bearing | 0.890" (22.60mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 1.5 Ohms |
| Features | Round Shaft |
