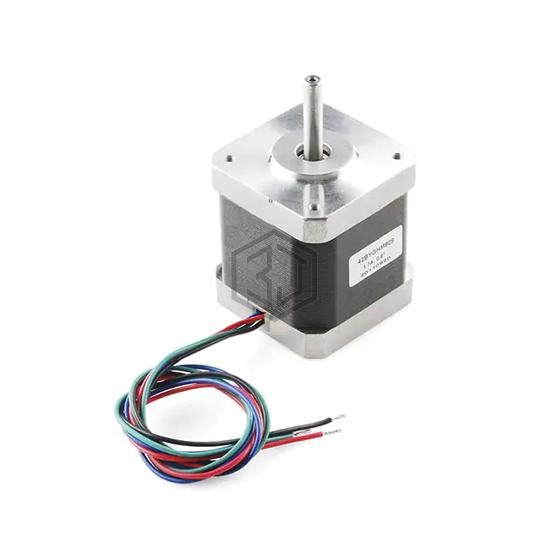

STEPPER MOTOR HYBRID BIPOLAR 3V
ROB-10846 is a Stepper Motors manufactured by SparkFun Electronics. STEPPER MOTOR HYBRID BIPOLAR 3V. Key specifications: voltage - rated 3VDC, current rating (amps) 1.7 A, size / dimension Square - 1.665" x 1.665" (42.30mm x 42.30mm), termination style Wire Leads.
In Stock: 80
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 3VDC |
| Current Rating (Amps) | 1.7 A |
| Steps per Revolution | 400 |
| Step Angle | 0.9° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 67.97 / 480 |
| Size / Dimension | Square - 1.665" x 1.665" (42.30mm x 42.30mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 1.8 Ohms |
| Features | Round Shaft |
Submit your RFQ for ROB-10846 and get a quote within 24 hours.
