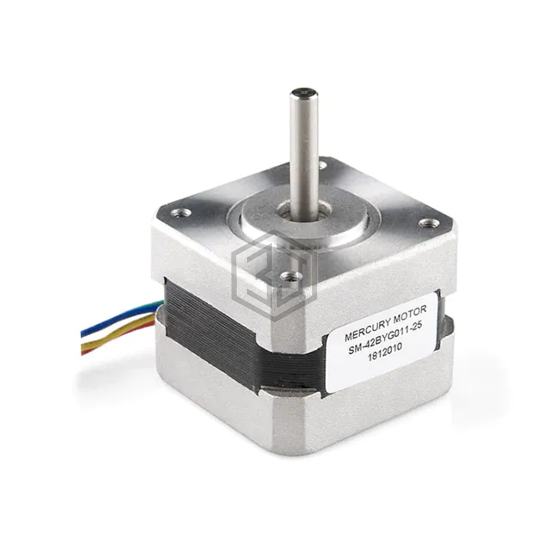

STEPPER MOTOR HYBRID BIPOLAR 12V
ROB-09238 is a Stepper Motors manufactured by SparkFun Electronics. STEPPER MOTOR HYBRID BIPOLAR 12V. Key specifications: voltage - rated 12VDC, current rating (amps) 330 mA, size / dimension Square - 1.665" x 1.665" (42.30mm x 42.30mm), termination style Wire Leads.
In Stock: 556
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 12VDC |
| Current Rating (Amps) | 330 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 32.57 / 230 |
| Size / Dimension | Square - 1.665" x 1.665" (42.30mm x 42.30mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 32.6 Ohms |
| Features | Round Shaft |
Submit your RFQ for ROB-09238 and get a quote within 24 hours.
