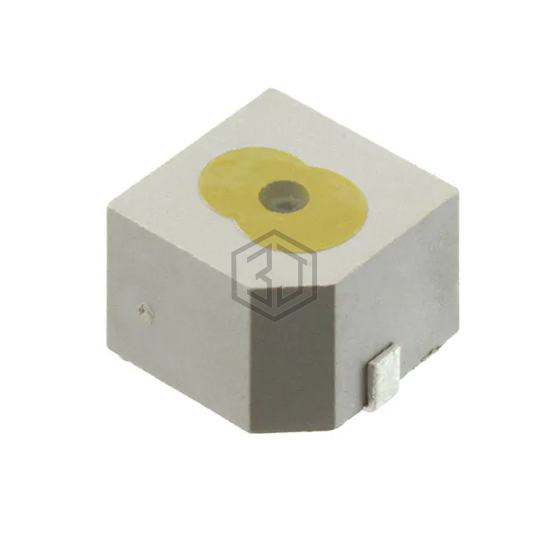

BUZZER MAGN 12V 12.8X12.8MM SMD
WST-1310S-3 is a Alarms, Buzzers, and Sirens manufactured by Soberton Inc.. BUZZER MAGN 12V 12.8X12.8MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, voltage - rated 12 V, current - supply 30mA.
In Stock: 3,275
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 8 ~ 16V |
| Frequency | 2.3kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 12V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
Submit your RFQ for WST-1310S-3 and get a quote within 24 hours.
