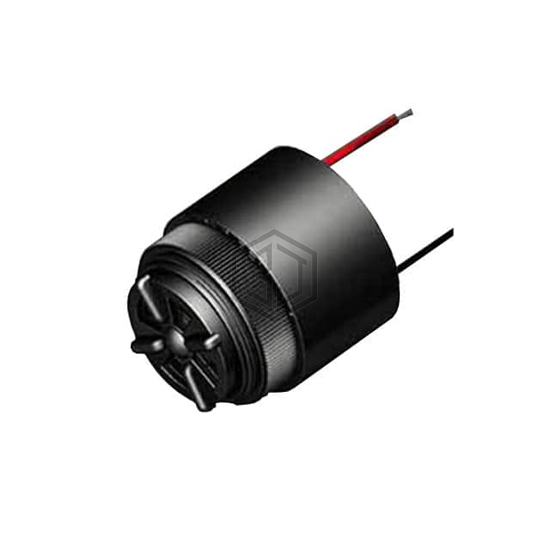

BUZZER PIEZO 220V 35.81MM PNL MT
CH-V09-301-W(M) is a Alarms, Buzzers, and Sirens manufactured by Floyd Bell Inc. BUZZER PIEZO 220V 35.81MM PNL MT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 65°C, voltage - rated 220 V, current - supply 40mA.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | - |
| Input Type | AC |
| Voltage - Rated | 220 V |
| Voltage Range | - |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Chime |
| Duration | - |
| Sound Pressure Level (SPL) | 93dB @ 220V, 61cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 65°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Wire Leads |
| Size / Dimension | 1.410" Dia (35.81mm) |
| Height - Seated (Max) | 1.530" (38.86mm) |
Submit your RFQ for CH-V09-301-W(M) and get a quote within 24 hours.
