IP65 SPEAKER, 90DB SENSITIVITY,

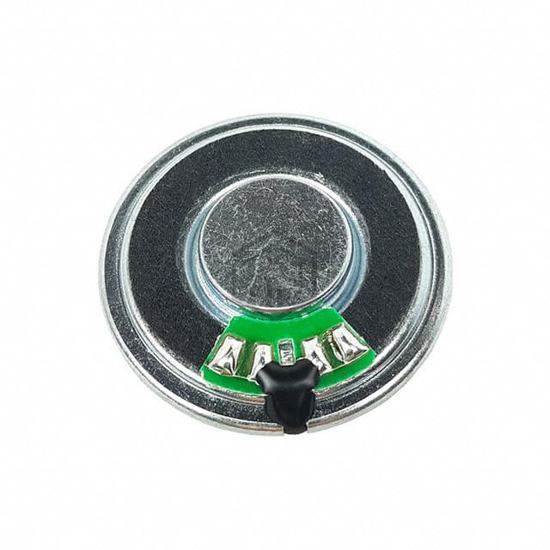

WSPH-3005 is a Speakers manufactured by Soberton Inc.. IP65 SPEAKER, 90DB SENSITIVITY,. Key specifications: size / dimension 1.181" Dia (30.00mm), termination Solder Pads, ingress protection IP67 - Dust Tight, Waterproof, power - max 500 mW.
In Stock: 44
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 800 Hz ~ 20 kHz |
| Frequency - Self Resonant | 800Hz |
| Impedance | 16 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 250 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
Submit your RFQ for WSPH-3005 and get a quote within 24 hours.
