4 OHM, 4W, 78DB, 220HZ, 36MM DIA

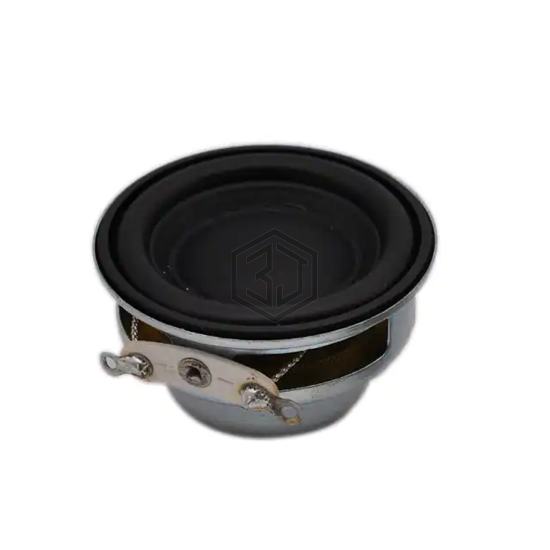

WSP-3620Y is a Speakers manufactured by Soberton Inc.. 4 OHM, 4W, 78DB, 220HZ, 36MM DIA. Key specifications: size / dimension 1.417" Dia (36.00mm), termination Solder Eyelet(s), ingress protection IP65 - Dust Tight, Water Resistant, power - max 500 mW.
In Stock: 480
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 220 Hz ~ 20 kHz |
| Frequency - Self Resonant | 220Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 78.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 300 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
Submit your RFQ for WSP-3620Y and get a quote within 24 hours.
