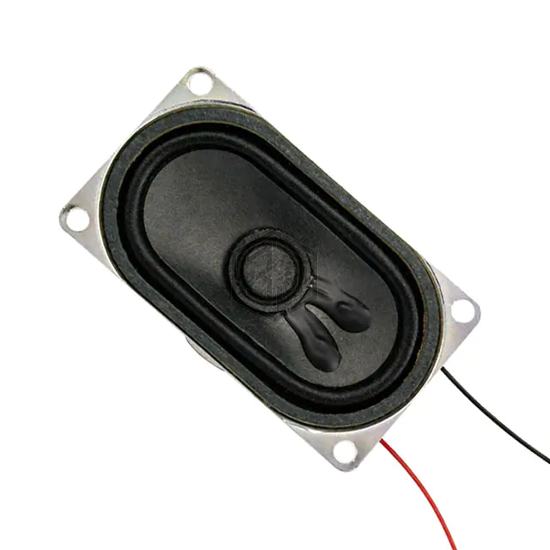

SPEAKER 85DB SENSITIVITY 71MM X
SP-7140-1 is a Speakers manufactured by Soberton Inc.. SPEAKER 85DB SENSITIVITY 71MM X. Key specifications: size / dimension 2.795" L x 1.575" W (71.00mm x 40.00mm), termination Wire Leads, power - max 5 W, frequency range 300 Hz ~ 20 kHz.
In Stock: 4,221
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 20 kHz |
| Frequency - Self Resonant | 300Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 85.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 3 W |
| Power - Max | 5 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Paper/Cloth |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 2.795" L x 1.575" W (71.00mm x 40.00mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
