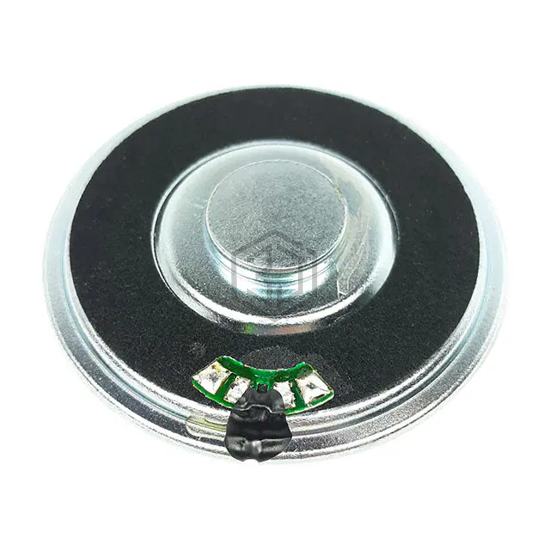

SPEAKER, 96DB SENSITIVITY, 57MM
SP-5708 is a Speakers manufactured by Soberton Inc.. SPEAKER, 96DB SENSITIVITY, 57MM. Key specifications: size / dimension 2.244" Dia (57.00mm), termination Solder Eyelet(s), power - max 2 W, frequency range 500 Hz ~ 20 kHz.
In Stock: 107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 500 Hz ~ 20 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 96.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1.5 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.244" Dia (57.00mm) |
| Height - Seated (Max) | 0.339" (8.60mm) |
Submit your RFQ for SP-5708 and get a quote within 24 hours.
