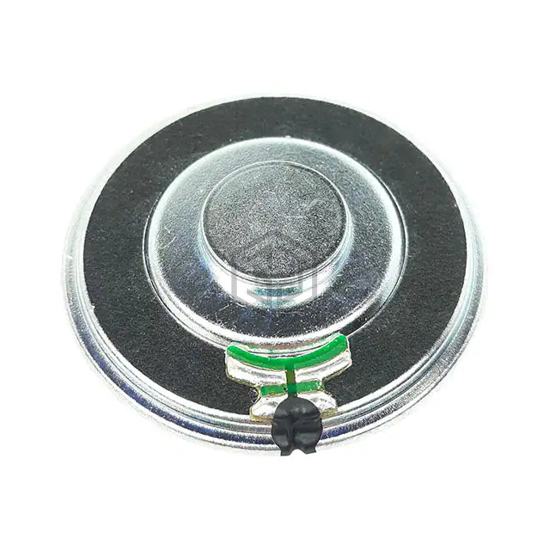

SPEAKER, 94DB SENSITIVITY, 50MM
SP-5008 is a Speakers manufactured by Soberton Inc.. SPEAKER, 94DB SENSITIVITY, 50MM. Key specifications: size / dimension 1.969" Dia (50.00mm), termination Solder Eyelet(s), power - max 1.5 W, frequency range 500 Hz ~ 6 kHz.
In Stock: 157
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 500 Hz ~ 6 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 94.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
