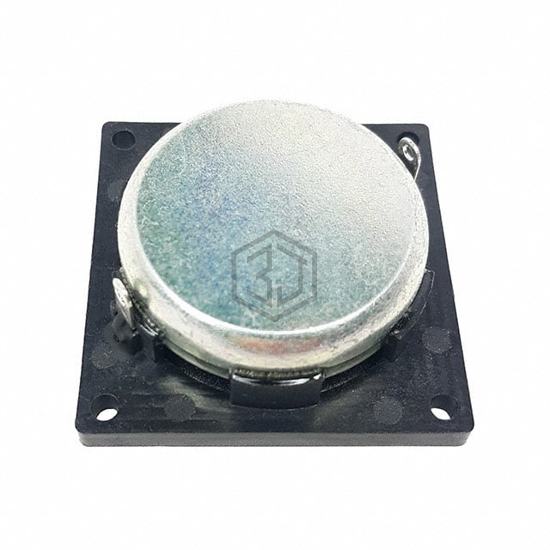

SPEAKER, 84DB SENSITIVITY, 40.1M
SP-4014Y is a Speakers manufactured by Soberton Inc.. SPEAKER, 84DB SENSITIVITY, 40.1M. Key specifications: size / dimension 1.579" L x 1.579" W (40.10mm x 40.10mm), termination Quick Connect, power - max 6 W, frequency range 400 Hz ~ 10 kHz.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 400 Hz ~ 10 kHz |
| Frequency - Self Resonant | 400Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 84.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 4 W |
| Power - Max | 6 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Quick Connect |
| Size / Dimension | 1.579" L x 1.579" W (40.10mm x 40.10mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
