8 OHM, 2.5W, 78DB, 400HZ,40MM X

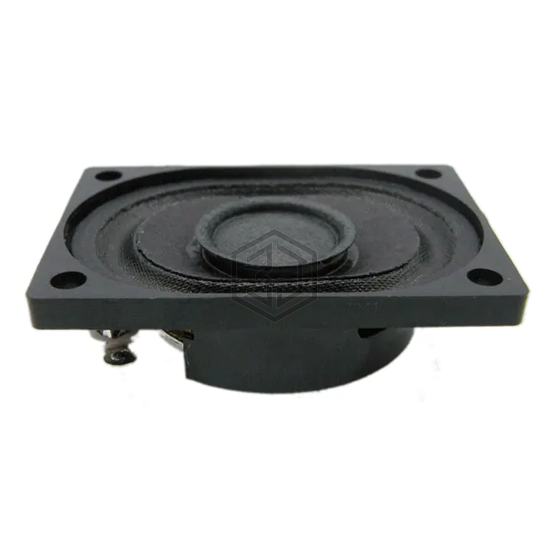

SP-4012-8Y is a Speakers manufactured by Soberton Inc.. 8 OHM, 2.5W, 78DB, 400HZ,40MM X. Key specifications: size / dimension 1.575" L x 1.110" W (40.00mm x 28.20mm), termination Solder Eyelet(s), ingress protection IP30, power - max 3 W.
In Stock: 283
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 400 Hz ~ 12 kHz |
| Frequency - Self Resonant | 400Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 78.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 3 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP30 |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.575" L x 1.110" W (40.00mm x 28.20mm) |
| Height - Seated (Max) | 0.465" (11.80mm) |
