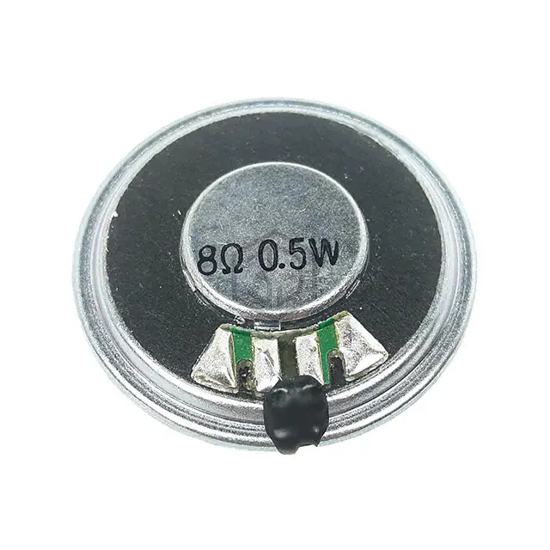

SPEAKER, 87DB SENSITIVITY, 36MM
SP-3606 is a Speakers manufactured by Soberton Inc.. SPEAKER, 87DB SENSITIVITY, 36MM. Key specifications: size / dimension 1.417" Dia (36.00mm), termination Solder Eyelet(s), power - max 800 mW, frequency range 300 Hz ~ 9 kHz.
In Stock: 109
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 9 kHz |
| Frequency - Self Resonant | 550Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 87.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 800 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
