8 OHM, 2.5W, 84DB, 380HZ,28MM X

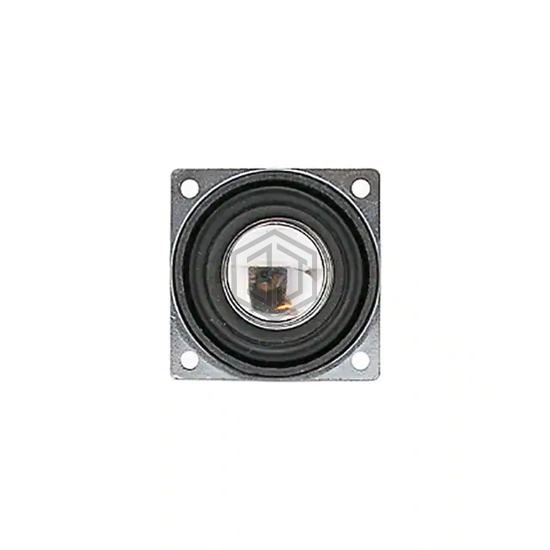

SP-2811N is a Speakers manufactured by Soberton Inc.. 8 OHM, 2.5W, 84DB, 380HZ,28MM X. Key specifications: size / dimension 1.102" L x 1.102" W (28.00mm x 28.00mm), termination Solder Eyelet(s), power - max 3 W, frequency range 380 Hz ~ 20 kHz.
In Stock: 49
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 380 Hz ~ 20 kHz |
| Frequency - Self Resonant | 380Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 84.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 3 W |
| Port Location | Top |
| Shape | Square |
| Material - Cone | Paper, Polyurethane (PU) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
| Height - Seated (Max) | 0.441" (11.20mm) |
Submit your RFQ for SP-2811N and get a quote within 24 hours.
