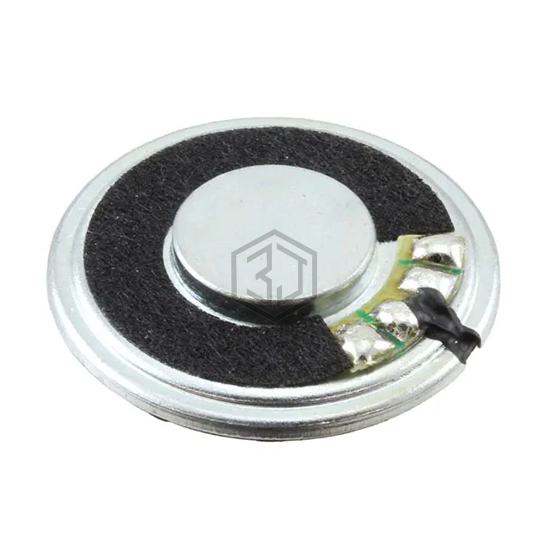

SPEAKER 8OHM 300MW TOP PORT 90DB
SP-2805-1 is a Speakers manufactured by Soberton Inc.. SPEAKER 8OHM 300MW TOP PORT 90DB. Key specifications: size / dimension 1.102" Dia (28.00mm), termination Solder Eyelet(s), power - max 500 mW, frequency range 300 Hz ~ 8 kHz.
In Stock: 174
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 8 kHz |
| Frequency - Self Resonant | 650Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 300 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | N38 |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.102" Dia (28.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
