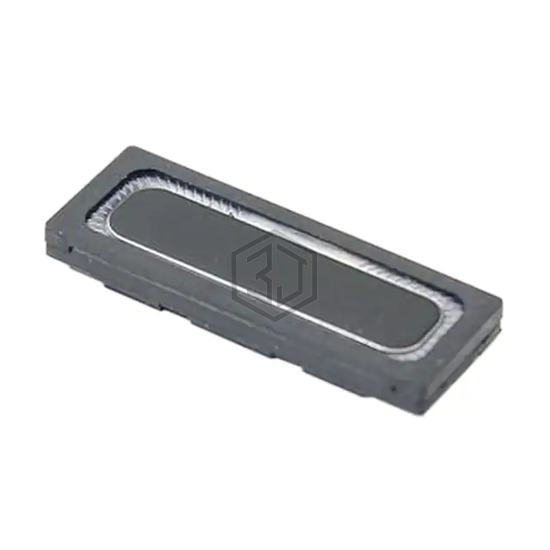

SPEAKER 8 OHM 84DB 1.0W/1.2W 550
SP-2509 is a Speakers manufactured by Soberton Inc.. SPEAKER 8 OHM 84DB 1.0W/1.2W 550. Key specifications: size / dimension 0.984" L x 0.354" W (25.00mm x 9.00mm), termination Solder Pads, power - max 1.2 W, frequency range 300 Hz ~ 5 kHz.
In Stock: 357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 5 kHz |
| Frequency - Self Resonant | 550Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 84.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.2 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.984" L x 0.354" W (25.00mm x 9.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SP-2509 and get a quote within 24 hours.
