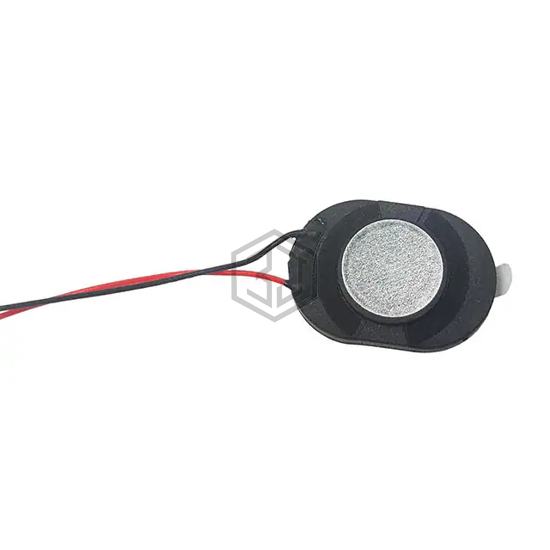

SPEAKER, 85DB SENSITIVITY, 20MM
SP-2014L-1 is a Speakers manufactured by Soberton Inc.. SPEAKER, 85DB SENSITIVITY, 20MM. Key specifications: size / dimension 0.787" L x 0.551" W (20.00mm x 14.00mm), termination Wire Leads, power - max 1 W, frequency range 900 Hz ~ 6 kHz.
In Stock: 379
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 900 Hz ~ 6 kHz |
| Frequency - Self Resonant | 900Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 85.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Oval |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
| Height - Seated (Max) | 0.146" (3.70mm) |
