SPEAKER 8 OHM90 DB 0.7W/1.0W 105

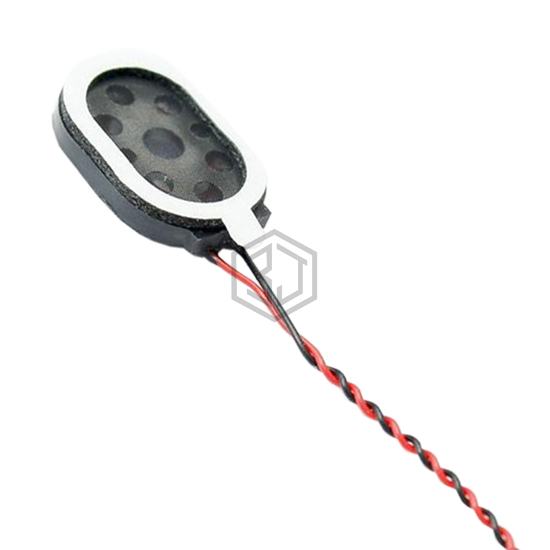

SP-2014L is a Speakers manufactured by Soberton Inc.. SPEAKER 8 OHM90 DB 0.7W/1.0W 105. Key specifications: size / dimension 0.787" L x 0.551" W (20.00mm x 14.00mm), termination Wire Leads, power - max 1 W, frequency range 3 kHz ~ 5 kHz.
In Stock: 74
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 3 kHz ~ 5 kHz |
| Frequency - Self Resonant | 1.05kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Oval |
| Material - Cone | Polyethylene Naphthalate (PEN) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
