SPEAKER, 88DB SENSITIVITY, 20MM

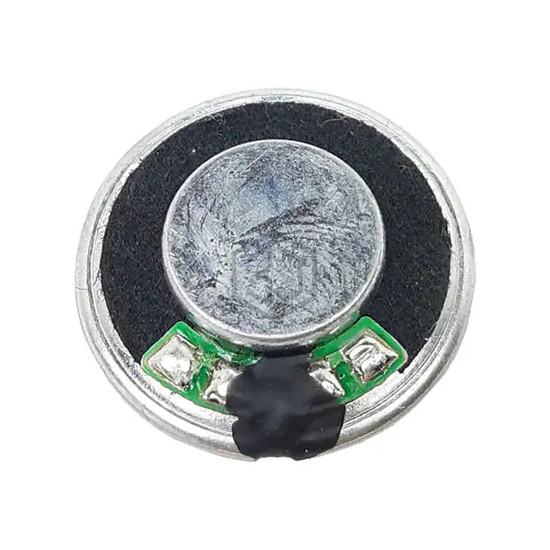

SP-2004Y is a Speakers manufactured by Soberton Inc.. SPEAKER, 88DB SENSITIVITY, 20MM. Key specifications: size / dimension 0.787" Dia (20.00mm), termination Solder Eyelet(s), power - max 1 W, frequency range 800 Hz ~ 20 kHz.
In Stock: 340
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 800 Hz ~ 20 kHz |
| Frequency - Self Resonant | 800Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 88.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 800 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for SP-2004Y and get a quote within 24 hours.
