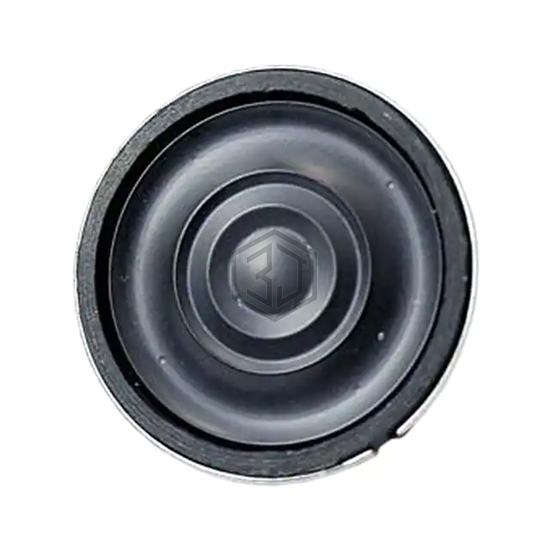

SPEAKER 8 OHM 86DB 0.8W/1.0W 110
SP-2003-7 is a Speakers manufactured by Soberton Inc.. SPEAKER 8 OHM 86DB 0.8W/1.0W 110. Key specifications: size / dimension 0.787" Dia (20.00mm), termination Solder Pads, power - max 1 W, frequency range 300 Hz ~ 8 kHz.
In Stock: 114
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 8 kHz |
| Frequency - Self Resonant | 1.1kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 86.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 800 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
Submit your RFQ for SP-2003-7 and get a quote within 24 hours.
