8 OHM, 1.5W, 80DB, 750HZ,25MM X

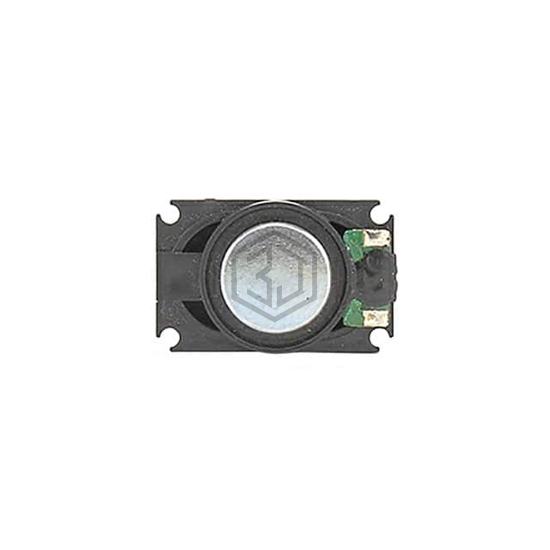

SP-1625N is a Speakers manufactured by Soberton Inc.. 8 OHM, 1.5W, 80DB, 750HZ,25MM X. Key specifications: size / dimension 0.984" L x 0.630" W (25.00mm x 16.00mm), termination Solder Eyelet(s), power - max 1.5 W, frequency range 750 Hz ~ 20 kHz.
In Stock: 442
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 750 Hz ~ 20 kHz |
| Frequency - Self Resonant | 750Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 80.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 0.984" L x 0.630" W (25.00mm x 16.00mm) |
| Height - Seated (Max) | 0.252" (6.40mm) |
Submit your RFQ for SP-1625N and get a quote within 24 hours.
