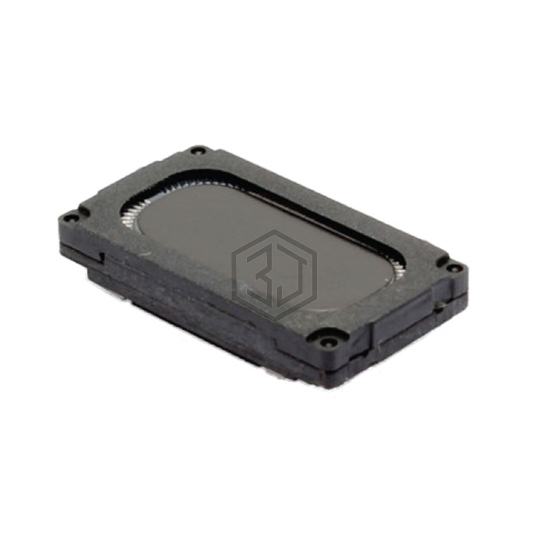

SPEAKER 8OHM 500MW TOP PORT 82DB
SP-1609S-2 is a Speakers manufactured by Soberton Inc.. SPEAKER 8OHM 500MW TOP PORT 82DB. Key specifications: size / dimension 0.630" L x 0.354" W (16.00mm x 9.00mm), termination Spring Type, power - max 800 mW, frequency range 300 Hz ~ 5 kHz.
In Stock: 51
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 5 kHz |
| Frequency - Self Resonant | - |
| Impedance | 8 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 500mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 800 mW |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for SP-1609S-2 and get a quote within 24 hours.
