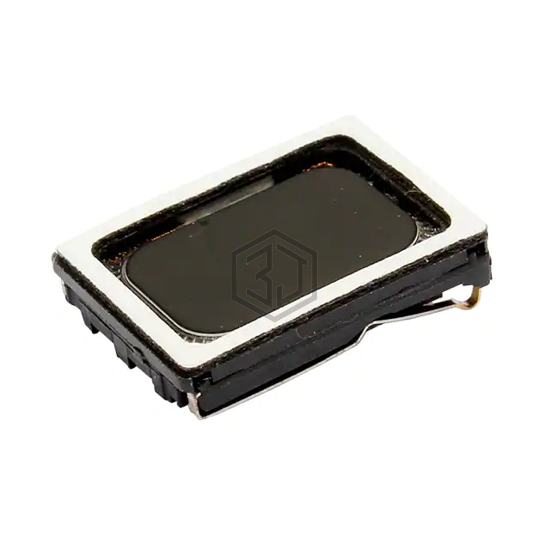

SPEAKER 8 OHM 82DB 0.5W/0.8W 750
SP-1511S-6 is a Speakers manufactured by Soberton Inc.. SPEAKER 8 OHM 82DB 0.5W/0.8W 750. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Spring Type, power - max 800 mW, frequency range 300 Hz ~ 5 kHz.
In Stock: 367
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 5 kHz |
| Frequency - Self Resonant | 750Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 800 mW |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SP-1511S-6 and get a quote within 24 hours.
