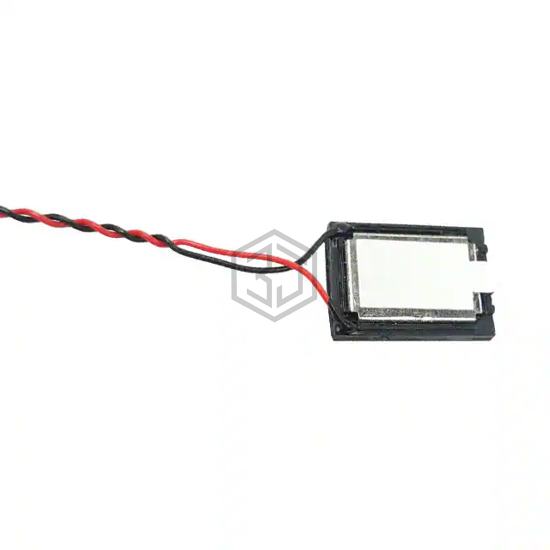

SPEAKER, 82DB SENSITIVITY, 15MM
SP-1511L-1 is a Speakers manufactured by Soberton Inc.. SPEAKER, 82DB SENSITIVITY, 15MM. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Wire Leads, power - max 800 mW, frequency range 300 Hz ~ 8 kHz.
In Stock: 665
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 8 kHz |
| Frequency - Self Resonant | 850Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 800 mW |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for SP-1511L-1 and get a quote within 24 hours.
