SPEAKER 8 OHM 83DB 0.7W/1.0W 600

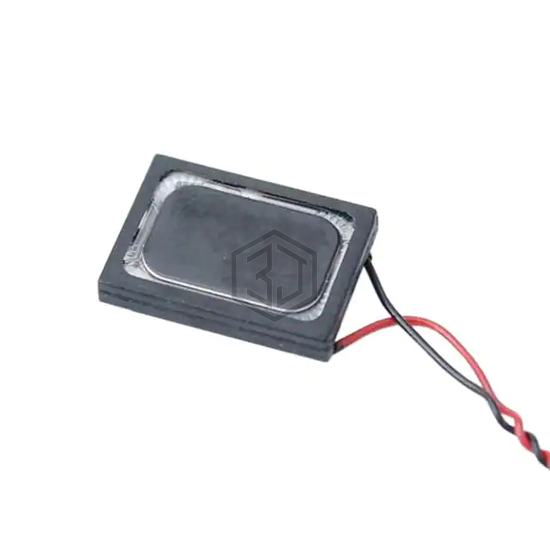

SP-1511L is a Speakers manufactured by Soberton Inc.. SPEAKER 8 OHM 83DB 0.7W/1.0W 600. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Wire Leads, power - max 1 W, frequency range 300 Hz ~ 5 kHz.
In Stock: 329
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 5 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 83.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SP-1511L and get a quote within 24 hours.
