SPEAKER 8OHM 500MW TOP PORT 85DB

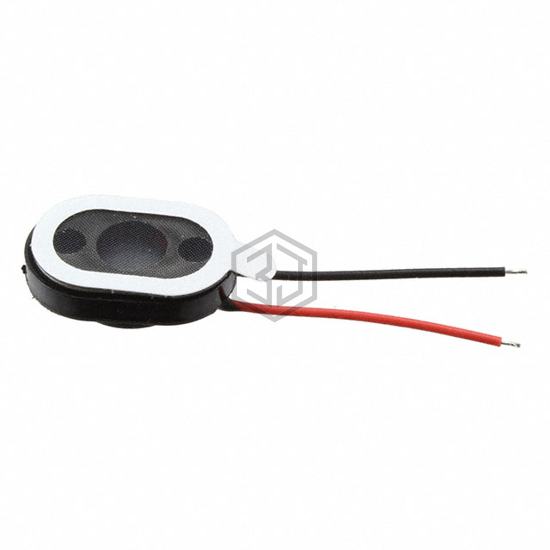

SP-1510 is a Speakers manufactured by Soberton Inc.. SPEAKER 8OHM 500MW TOP PORT 85DB. Key specifications: size / dimension 0.591" L x 0.394" W (15.00mm x 10.00mm), termination Wire Leads, power - max 800 mW, frequency range 300 Hz ~ 8 kHz.
In Stock: 52
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 8 kHz |
| Frequency - Self Resonant | 1000Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 85.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 800 mW |
| Port Location | Top |
| Shape | Oval |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B-N38 |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.591" L x 0.394" W (15.00mm x 10.00mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
