SPEAKR 32OHM 20MW TOP PORT 108DB

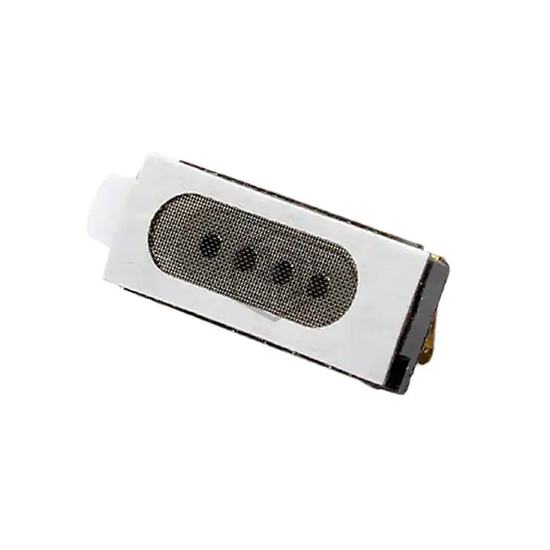

RC-1506S is a Speakers manufactured by Soberton Inc.. SPEAKR 32OHM 20MW TOP PORT 108DB. Key specifications: size / dimension 0.591" L x 0.236" W (15.00mm x 6.00mm), termination Spring Type, power - max 50 mW, frequency range 300 Hz ~ 3.4 kHz.
In Stock: 469
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Receiver |
| Frequency Range | 300 Hz ~ 3.4 kHz |
| Frequency - Self Resonant | 650Hz |
| Impedance | 32 Ohms |
| Efficiency - dBA | 108.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 20 mW |
| Power - Max | 50 mW |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for RC-1506S and get a quote within 24 hours.
