110DB, 32 OHM, 15MM X 6MM X 2.3M

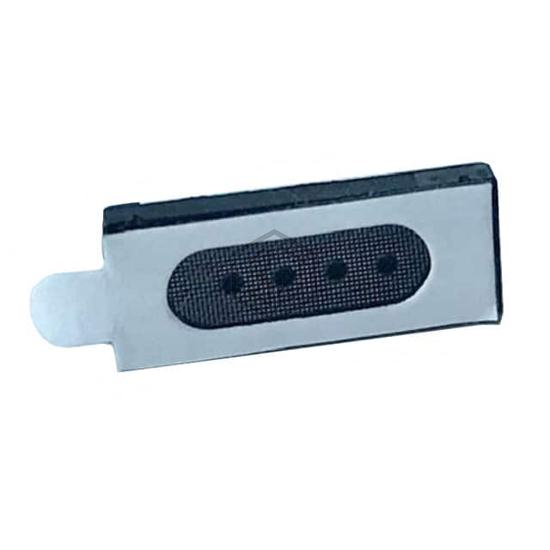

RC-1506 is a Speakers manufactured by Soberton Inc.. 110DB, 32 OHM, 15MM X 6MM X 2.3M. Key specifications: size / dimension 0.591" L x 0.236" W (15.00mm x 6.00mm), termination Solder Pads, power - max 30 mW, frequency range 200 Hz ~ 3.4 kHz.
In Stock: 402
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Receiver |
| Frequency Range | 200 Hz ~ 3.4 kHz |
| Frequency - Self Resonant | - |
| Impedance | 32 Ohms |
| Efficiency - dBA | 110.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 20 mW |
| Power - Max | 30 mW |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
| Height - Seated (Max) | 0.091" (2.30mm) |
Submit your RFQ for RC-1506 and get a quote within 24 hours.
