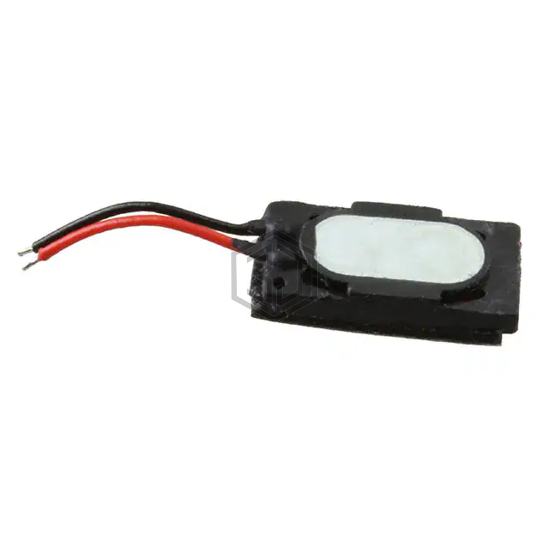

SPEAKR 32OHM 10MW TOP PORT 110DB
RC-1206 is a Speakers manufactured by Soberton Inc.. SPEAKR 32OHM 10MW TOP PORT 110DB. Key specifications: size / dimension 0.472" L x 0.236" W (12.00mm x 6.00mm), termination Wire Leads, power - max 20 mW, frequency range 200 Hz ~ 3.4 kHz.
In Stock: 795
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Receiver |
| Frequency Range | 200 Hz ~ 3.4 kHz |
| Frequency - Self Resonant | - |
| Impedance | 32 Ohms |
| Efficiency - dBA | 110.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 10 mW |
| Power - Max | 20 mW |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B N42 |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for RC-1206 and get a quote within 24 hours.
