INDUCT ARRAY 2 COIL 8UH SMD

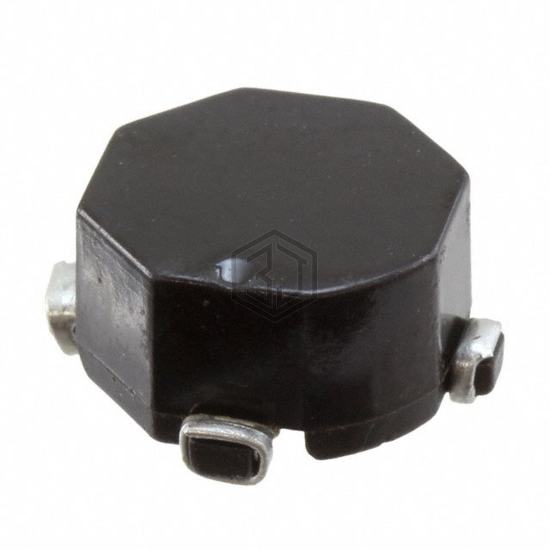

SCX147-8R0 is a Arrays, Signal Transformers manufactured by Signal Transformer. INDUCT ARRAY 2 COIL 8UH SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, size / dimension 0.567" L x 0.567" W (14.40mm x 14.40mm), tolerance ±20%.
In Stock: 9,163
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 8 µH |
| Inductance - Connected In Series | 33.12 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 3.5 A |
| Current Rating - Series | 1.75 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 19mOhm Max |
| DC Resistance (DCR) - Series | 73mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.567" L x 0.567" W (14.40mm x 14.40mm) |
| Height | 0.276" (7.00mm) |
Submit your RFQ for SCX147-8R0 and get a quote within 24 hours.
