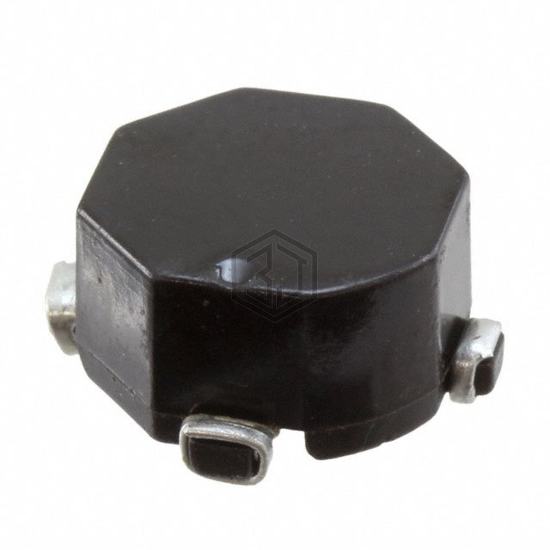

INDUCT ARRAY 2 COIL 33UH SMD
SCX147-330 is a Arrays, Signal Transformers manufactured by Signal Transformer. INDUCT ARRAY 2 COIL 33UH SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, size / dimension 0.567" L x 0.567" W (14.40mm x 14.40mm), tolerance ±20%.
In Stock: 3,321
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 33 µH |
| Inductance - Connected In Series | 132.5 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 1.8 A |
| Current Rating - Series | 900 mA |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 72mOhm Max |
| DC Resistance (DCR) - Series | 288mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.567" L x 0.567" W (14.40mm x 14.40mm) |
| Height | 0.276" (7.00mm) |
